Hydrogen Alpha Bandpass Filter
Install it on your own telescope*

Precision controlled tuning

Affordable options starting at $1800.00


Easy to own, easy to operate:

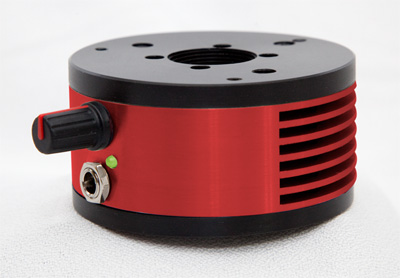

  • DayStar introduces the new ION filter series.
    A mix between our Quantum and our T-scanner body, the
    ION is simple, smart and easy.

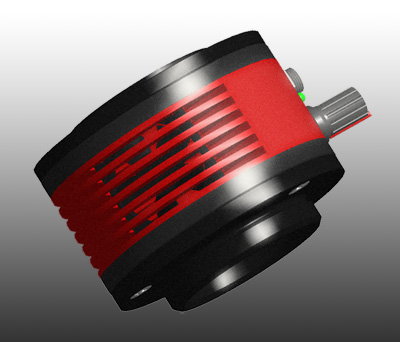

  • Enjoy precision dedicated tuning control with its thermostatically controlled tuning in any climate.
  • ION housings do not tilt the optics. This housing improvement increases contrast and maintains the best bandpass performance of your etalon
  • Our 20mm clear aperture offers a non-vignetted view on telescopes up to ~75mm of aperture. Larger telescopes than this are fine. They will just have reduced field of view.
  • Smaller etalons mean owners can upgrade to narrower bandpass choices for less investment.
  • 12VDC operation - A 6 foot cord, a 6 foot extension and international power plugs are included.   Some users may wish to use battery or solar power.
DayStar Filters stand-alone Filters may be used on a variety of telescopes.
Telescopes over 60mm aperture require an energy rejection filter.
Check our Energy Rejection Wizard to find the ERF that's right for your telescope.
A Daystar Filter also requires that your telescope will operate at about F/30.
As no F/30 telescopes exist, owners use a barlow to bring their telescope to ~F/30.
An F/6 - F/8 telescope requires a 4X barlow
A F/9-f/12.5 telescope requires a 2.5X barlow
A F/15 telescope requires a 2X barlow.

*Any DayStar Filter may be used on any aperture telescope with proper energy rejection.
ION filters may be used on 150mm aperture or 60mm aperture for almost the same price.

Less expensive $50-$100 UV/IR cut filters may be used in some applications for Energy Rejection on refractors instead of a full aperture front mounted filter.  To learn more, contact one of our associates on how to safely configure with the UV/IR cut filter. Use of a telescope over 60mm for solar observing without Energy Rejection protection can cause overheating and damage to the telescope.

Half-bandwidth FWHM
(Maximum @ f/30)
Views to Expect
0.7 ångström
wpeA2.jpg (38961 bytes)Filters with 0.7 ångström bandwidths will reveal prominences in high contrast and occasionally, surface texture. Prominences are generally larger with .7Å filters than in narrower bandwidths.
0.6 ångström

0.6 Angstrom imageFilters with 0.6 ångström bandwidths will reveal some surface contrast as well as prominences.
0.5 ångström

0.5 Angstrom ImageFilters with 0.5 ångström bandwidths will reveal better surface contrast as well as great prominences.
0.4 ångström

0.4 Angstrom imageFilters with 0.4 ångström bandwidths will reveal excellent surface contrast as well as fine chromosphere detail.
0.3 ångström

0.4 Angstrom imageFilters with 0.3Å ångström bandwidths will reveal superior surface contrast above any other filter. Views are generally somewhat dimmer.  Expect "Pencil-Thin" details on surface and prominence features.

* HALF-BANDWIDTH: The term half-bandwidth refers to an optics industry standard of measure.  On a chart depicting the peak where light is transmitted, that peak's width is measured at the point 50% between zero and full transmission. This term is called half-bandwidth.
