DayStar Filters Adapters - Snouts and Plates

The following components are used to install DayStar Filters to a variety of telescopes.

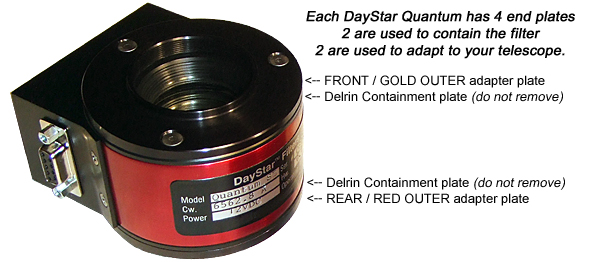

Remember, Gold side mounts towards the Sun.  Red side towards the eye.
End Plates:

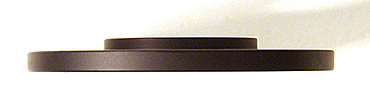

Edge-on profile of Flat Plate.
Used as FRONT/GOLD Outer plate
for ON-AXIS Refractor applications.
Edge-on profile of Wedge Plate.
Used as FRONT/GOLD Outer plate
for OFF-AXIS SCT applications.
Q3GF1F: Front, Gold Side Plate
Fits Quantums. Has female 1.375" x 24 threads
Available in Flat Q3GF1F or Wedge Q3GW1F
Accepts 1.25" drawtube snouts. -$35 USD
Q3GFTF: Front, Gold Side Plate
Fits Quantums. Has female T threads
Available in Flat Q3GFTF or Wedge Q3GWTF
Accepts T-Thread snouts or adapters.-$35 USD


Q3RFCTM: REAR, RED Side Plate
Fits Quantums. Has Combo choice w/ Male and Female
Q3RFC1M: Female 1.375" x 24 threads / Male 2" x 24
or  Q3RFCTM:Female T thread / Male 2" x 24 -$35 USD

Snouts & DrawTubes:


GF2SCTT: FRONT, GOLD Side snout -$45 USD
Fits Quantums. Has male T threads
Fits with Q3GWTF Front Gold plate (above)
Mounts on 2" T-thread telescope focusers.


GM1D1: Front, Gold Side drawtube snout
Has male 1.375" x 24 threads and male drawtube
Fits with Q3GF1F Front, Gold plate (above) -$35 USD

GM2DT: Front, Gold Side drawtube snout -$45 USD
Has male T-threads and male drawtube
Fits with Q3GFTF Front, Gold plate (above)

RF1D1: Rear, Red Side drawtube snout
Has male 1.375" x 24 threads and female drawtube
Fits with Q3RFC1M Rear, Red plate (above)-$35 USD

RF2D2: Rear, Red Side drawtube snout -$45 USD
Has female T-threads and female drawtube
Fits with Q3RFCTM or Q3RFC1M Rear, Red plate (above)
