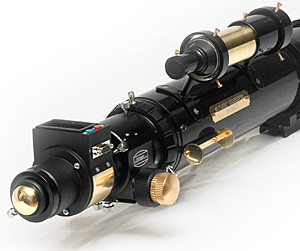

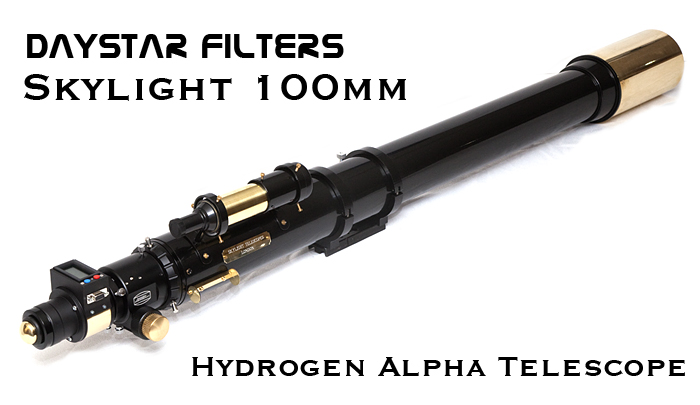

Hand made precision 100mm Skylight Telescope

1/8 wave Japanese 100mm objective in a handmade collimateable countercell

Premium 2"/1.25" Baader Steeltrack focuser

Fully internal baffled & blackened handmade optical tube, powder coated gloss black

Solid brass dew shield

8 x 40mm custom brass white light viewer

Zero Power brass Solar finder.

The Skylight series of refractors are built to an ethos: a fusion of modern engineering and Victorian design. This is a visual instrument. If you're interested in viewing through a high quality instrument with identity and character, then you're in the right place.

Skylight refractors hark back to another time, where the craftsman had his hands on every part. Skylight Refractors are made in small numbers (typically between 10-15 pieces), so when these are gone, they're gone. Most parts of my refractors are made by hand, and those elements not made by me, are made by nearby machinists in Southwest London. The optical tubes themselves are hand made. To view the skies through a quality hand-made or vintage refractor which is not easily replaced is special, and adds another dimension to your experience.

Specifications:

Clear Aperture:  100mm
Focal Length:  3250mm
Telescope Length:  58.5"
Telescope weight:  17.8 lbs

Operating Temperature:  20-90° F
Power supply: DC 12V, maximum 120mA, 2.1x5.5mm
AC Adapter included: 120-240VAC
Power consumption: 1.5 watts

Wavelength Shift range: +/-1Å
100% safe and fully blocked directly through the OTA
100% safe and fully blocked directly through white light solar finder scope

Reaches focus using the following:
1.25" eyepiece, 2" eyepiece, ToUCam, Lumenera, SBIG, SLR, DSLR*, afocal, CCTV Video, 2X - 5X Barlow lenses with any combination included above.

Recommended:  Tele Vue 55mm Plossl eyepiece for the 100mm Skylight Solar Telescope

Includes:
Complete Hydrogen alpha Solar Telescope
2" dual speed Baader Steeltrack Focuser
2" to 1.25" Drawtube reduction adapter
Brass Solar Finder Scope fitted with Thousand Oaks white light solar filter
Zero Power Brass Solar Finder
12VDC Power supply with Inernational wall adapter plug
6 foot (1 meter) power extension cord
Custom fitted pelican style wheeled travel and storage case.

*For best results, Daystar does NOT recommend
imaging with DSLR or any color CCD camera.

Hydrogen Alpha is
always best imaged
using a native B&W
CCD chip.

Skylight 100mm Solar Telescope is available in the following choice of bandpasses:
Skylight 100mm Solar Telescope 0.7Å:
$5900
Skylight 100mm Solar Telescope 0.6Å:
$7200
Skylight 100mm Solar Telescope 0.5Å:
$9400
Skylight 100mm Solar Telescope 0.4Å:
$11200
Skylight 100mm Solar Telescope 0.3Å:
$12600

Delivery: 4-6 weeks from date of order. Custom configurations available upon request.  Delivery time for custom configurations will be stated at time of quotation.

Due to exclusivity of Skylight Telescopes dealerships, The Skylight 100mm Solar Telescope is available only through Daystar Filters directly or Skylight Telescopes directly.
